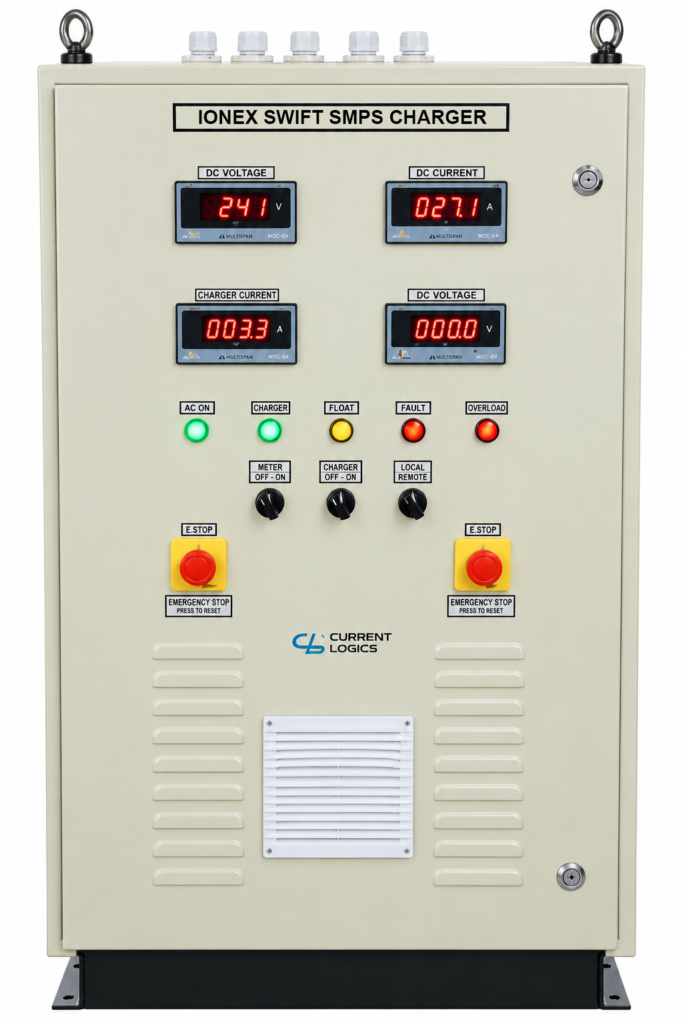

SMPS Based Industrial DC Chargers
Product Family | IONEX SWIFT SERIES |
Type | SMPS Battery Charger |
IP Protection | IP20 to IP54 |
Charger Type | Dual FCBC |
Input Voltage | 220 / 380 / 400 / 415VAC 50/60Hz |
Output Voltage | 24 to 220VDC |
Charger Current Capacity | 10A to 200A |
Metering | O/P Voltage & Current For Charging (Customized options available) |
Power factor Correction | 0.99 |
Auto Mode | Charger Make change over from Float to Boost & boost to Float |
Manual Mode | Float & Boost Voltage Setting as per requirement |
Switch Gears | Input MCB , Output MCB, Battery MCB |
Enclosure Shed | RAL7032 (Customized Options Available) |
Cooling Type | Conventional Fan Cooled (Standard) |
Features
- Wide Input Supply Range
- Auto Manual Selection Switch (Optional)
- Reverse Polarity Protection
- Compact
- High Reliability
- Digital Voltmeter & Ammeter (Optional)
- Input,Output MCB (Optional)
- Fast Charging
- Suitable for VRLA / SMF / NiMH / NiCD / LiON etc.
- Automatic float/boost changeover
- Low voltage ripple to optimize battery life
- Charging mode : auto / manual (optional)
- Modular design for high kw
- Reverse polarity protection
- Compatible for vrla / smf / traction / li-ion / lfp / ni-cad
- Designed to operate in poor power quality environments
- Isolated load and battery charging option
- Mounting : panel / floor / wall
- Applications- Industrial chargers, Marine Chargers, Telecom, Utility Substations,
